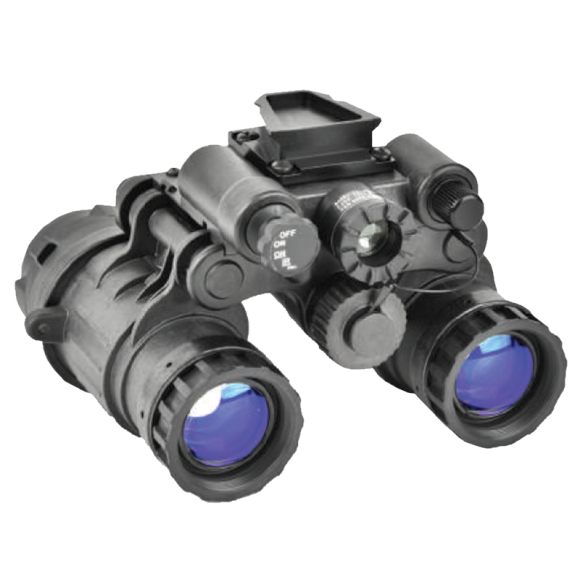

At only 465 Grams, the NEW BNVD-SG UL, ultra light dual tube goggle with Single Gain Control is the lightest fully functional 18mm dual tube goggle in
the world. The BNVD-SG UL incorporates new high performance optics that are not only much lighter, but also offer higher performance than standard optics. Currently
the AN/PVS-14 and most other night vision systems, use optics which were only designed for green (P43) phosphor image tubes. However these new BNVD optics were
designed specifically to be optimized for both White (P45) and Green (P43) image tubes.
Availability:In Stock
The BNVD-SG UL includes features not found in other dual tube goggle designs in this weight class. These features include: EMI compatibility, Full Diopter Adjustment
Range (-6 to +2), Infrared LED, and most importantly: a close focus range of 9.8 inches. This is critical when trying to read maps or do close up work such as clearing a
weapons jam.
NVD-BNVD-SG UL now features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the
users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield. The BNVD-SG UL
has an automatic system power cutoff whenever the BNVD-SG UL is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back
down. This feature can also be turned off via a four position ON/OFF switch. The BNVD-SG UL is submersible to 66 feet (20 meters) for up to 3 hours. The BNVD-SG UL
is available with an optional battery pack, which holds 3 “AA” Alkaline batteries for run times exceeding 50 hours.
The BNVD-SG UL can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the
objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD-SG UL into a fixed
3X Magnification Binocular.
With our expansive capabilities and strategic partnerships, we are able to custom build any of our NVD manufactured products with Image Intensifiers from these
manufacturers: Harris Corporation®, L3 Insight Technologies®, and Photonis®. This includes green and white phosphor and thin or un-filmed image tubes.
SPECIFICATION:
POWER SOURCE: (1) AA-SIZE BATTERY
FOCUS RANGE: 9.8” TO INFINITY
MAGNIFICATION: ONE POWER (1X)
FIELD OF VIEW: 40˚
DIOPTER ADJUSTMENT: -6 TO +2
EYE RELIEF: 25MM
WEIGHT (W/O BATTERY): 465 G (16.4 OZ)
DIMENSIONS: 4.25” X 3.8” X 3.3”
FEATURES:
TACTICAL MONOCULAR CUTOFF
LENSES OPTIMIZED FOR WHITE PHOSPHOR
40+ HOUR BATTERY LIFE WITH LITHIUM AA BATTERY
IR LED AND LOW BATTERY INDICATOR
SINGLE GAIN CONTROL KNOB
POWER OFF THE UNIT WHEN IN AN UPRIGHT POSITION AND POWER ON WHEN FLIPPED DOWN
